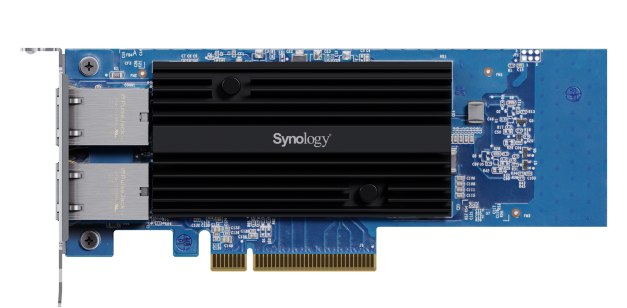

E10G30-T2
Dual-port 10GbE 10GBASE-T add-in card for Synology systems
Throughput
Increase network performance with 10GbE connectivity
Flexibility
Easy integration to existing deployments
Compatibility
Designed for maximum performance and reliability in Synology systems
Boost throughput within minutes
Easy deployment
Familiar RJ45 connector is backwards compatible with legacy networks and allows for incremental expansion.
Link aggregation
Dual 10GbE ports can be combined into a Link Aggregation Group to boost throughput up to 20 Gb/s, while also providing port failover and load balancing functionality.
CPU offloading and load balancing
Support for CPU offloading and load balancing technologies enables optimal system performance.
5-year warranty
At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.
High performance storage systems
Notes:
Link aggregation increases the total throughput of the network. It does not increase individual transfer speeds.
The warranty period starts from the date of purchase as stated on your purchase receipt. Visit https://www.synology.com/company/legal/warranty for more information.
Hardware Specifications |
||
---|---|---|
General |
||
General
|
Host Bus Interface | PCIe 3.0 x8 |
Bracket Height | Low Profile and Full Height | |
Size (Height x Width x Depth) | 68.9 mm x 167.7 mm x 14.7 mm | |
Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
Relative Humidity | 5% to 95% RH | |
Warranty | 5 Years | |
Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Network |
||
Network
|
IEEE Specification Compliance |
|
Data Transfer Rates | 10 Gbps/1 Gbps | |
Supported Features |
|
|
Compatibility |
||
Applied Models |
||
Applied Models
|
|
|
Notes | DSM version requirement: 7.1.1-42962 Update 5 or later version |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
