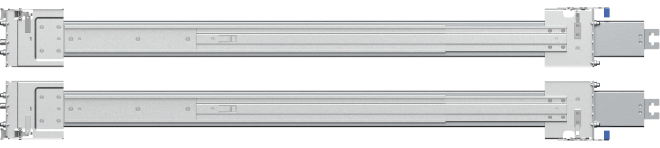

Synology Rail Kit RKS-03

Synology Rail Kit RKS-03

Sliding rack rails for Synology rackmount servers

RKS-03
RKS-03

Synology Rail Kit RKS-03 enables easy maintenance access for Synology rackmount models. RKS-03 is backed by Synology’s 1-year limited warranty.

Installation requirements

  1. Mount post width must be equal to or greater than 450 mm
  2. Panel width must be equal to or greater than 480 mm
  3. Rack mounting depth: 670 mm to 940 mm
  4. Rack mounting hole support:
    • square hole: at least 9.5 mm x 9.5 mm
    • round hole: at least 7.1 mm

RKS-03 RKS-03

Compatibility

  • HD series:HD6500
  • 22 series:RX6022sas

Notes:

  1. An RKS-03 Rail Kit is included with each HD6500/RX6022sas unit.
