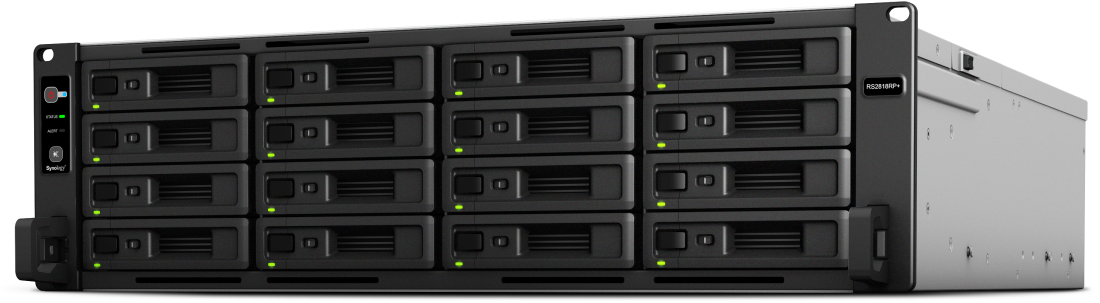

Refurbished RackStation RS2818RP+

High-capacity and scalable NAS to serve as a centralized backup destination or a file server for small- and medium-sized businesses

Synology Certified Refurbished

Access Synology solutions in a cost-effective and environmentally responsible way. All certified refurbished products are put through extensive testing, comply with stringent quality standards, and come with a 2-year warranty.

More about Synology Certified Refurbished

Scalable Storage Server On-Demand

RS2818RP+ is an ideal storage solution for small- and medium-sized businesses with great flexibility in terms of expandable storage capacity, upgradable memory and optional high-speed NIC support. It fits perfectly as a backup target for distributed businesses, a centralized file server, or a backup target for employee workstations in a growing business.

Download Datasheet

CPU

Quad-core 2.1GHz

RAM options

4GB DDR4 UDIMM, up to 64GB

Network

4 x 1GbE port, optional 10GbE NIC support

Chassis

3U design, 16 SATA drive bays

Robust scalability and reliability

RS2818RP+ provides large, scalable storage capacity with affordable total cost of ownership. The 3U chassis design accommodates up to 16 drives and the storage capacity can be further scaled up when connected to one Synology Expansion Unit RX1217 or RX1217RP, providing a total drive count of 28 without disrupting host services.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools. Learn more

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention

Next-generation file system for better data protection

Ultimate Backup Solution

RS2818RP+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Learn more

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Learn more

Drive Package

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.

Learn more

Active Backup for Microsoft 365 / Google Workspace

Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Microsoft 365 Google Workspace

Storage for virtualization

Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Digital asset protection

Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. Learn more

Security Advisor

Analyze system settings, password strength and network preferences, and remove any possible malware.

AppArmor

A kernel-level enhancement that blocks malicious programs from accessing unauthorized system resources.

AES 256-bit encryption

Encrypt shared folders and network data transmission to avoid unauthorized data access.

2-step verification

Prevent others from logging in to your DSM by generating a six-digit one-time password (OTP) on your mobile device.

Powered by Synology DiskStation Manager

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Learn more

Public Cloud Integration

Back up and synchronize data easily between public cloud accounts and your NAS.

Learn more

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Learn more

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Learn more

Snapshot Replication

Schedulable and instantaneous data protection of shared folders and iSCSI LUNs for quick disaster recovery.

Learn more

Desktop Backup

Simplified backup solution for your Mac, PC, and mobile devices.

Learn more

Hardware Overview

1Power button and indicator
2Beep off button
3Drive tray
4Drive status indicator

5Power port
6PSU indicator
7PSU fan
8Console port

91GbE RJ-45 port
10USB 3.0 port
11Expansion port
12PCIe expansion slot

13Reset button

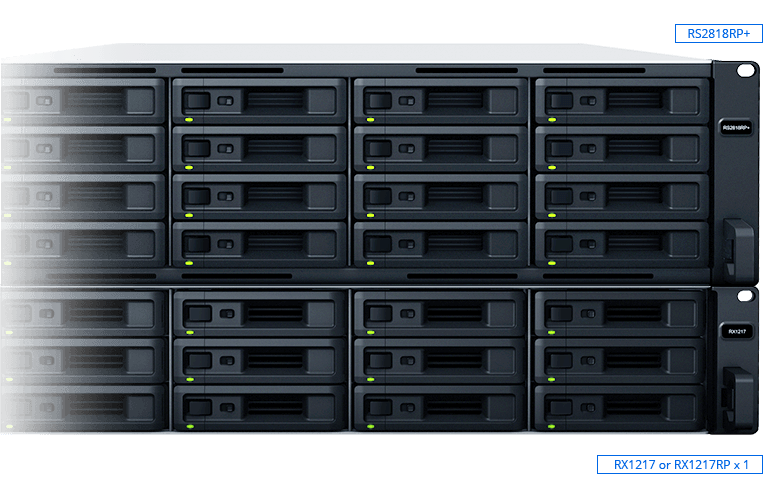

Notes:RS2818RP+ supports one Synology expansion unit RX1217/RX1217RP, sold separately.

Hardware Specifications
CPU
CPU	CPU Model	Intel Atom C3538
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.1 GHz
	Hardware Encryption Engine
Memory
Memory	System Memory	4 GB DDR4 non-ECC UDIMM
	Memory Module Pre-installed	4 GB (4 GB x 1)
	Total Memory Slots	4
	Maximum Memory Capacity	64 GB (16 GB x 4)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information on memory upgrade limitations, visit here. For more information on the recommended memory configurations, visit here.
Storage
Storage	Drive Bays	16
	Maximum Drive Bays with Expansion Unit	28 (RX1217 x 1)
	Drive Type (See all supported drives)	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*
External Ports
External Ports	RJ-45 1GbE LAN Port	4
	USB 3.2 Gen 1 Port*	2
	Expansion Port	1
	Expansion Port Type	Infiniband
	Notes	The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe	PCIe Expansion	1 x Gen3 x8 slot (black, x4 link)
Appearance
Appearance	Form Factor (RU)	3U
	Size (Height x Width x Depth)	132.3 mm x 482 mm x 656.5 mm
	Weight	17.4 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKS-02)
	Notes	The rail kit is sold separately
Others
Others	System Fan	80 mm x 80 mm x 3 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	51.0 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	500 watts
	Redundant Power Supply
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	138.1 watts (Access) 66.7 watts (HDD Hibernation)
	British Thermal Unit	471.5 BTU/hr (Access) 227.7 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Support for Wake on WAN needs switch and routers which recognize Magic Packet. Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Temperature	Operating Temperature	5°C to 35°C (40°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification
Certification	FCC CE BSMI EAC CCC BIS VCCI RCM
Warranty
Warranty	2 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment	RoHS Compliant
Packaging Content
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories
Optional Accessories	DDR4 non-ECC UDIMM: D4NE-2666-4G DDR4 ECC UDIMM: D4EC-2666-16G Expansion Units: RX1217/RX1217RP Enterprise Series 3.5" SATA HDD: HAT5300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20/M2D18 10GbE Network Interface Card: E10G21-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
	Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer. Minimum DSM version requirement: 6.2.2 The original non-ECC memory modules must be removed before the optional ECC memory modules can be installed. For more information, visit here.

DSM Specifications
Storage Management
Storage Management	Maximum Single Volume Size	108 TB
	Maximum Internal Volume Number	64
	SSD Read/Write Cache (Determining cache size)
	SSD TRIM
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File System
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
File Services
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	1,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	2,000
	Windows Access Control List (ACL) Integration
	NFS Kerberos Authentication
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
Account & Shared Folder	Maximum Local User Accounts	2,048
	Maximum Local Groups	256
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	16
Hybrid Share
Hybrid Share	Maximum Hybrid Share Folders	10
Hyper Backup
Hyper Backup	Folder and Package Backup
	Entire System Backup
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability
High Availability	Synology High Availability
Log Center
Log Center
Log Center	Syslog Events per Second	800
Virtualization
Virtualization	VMware ESXi 6.5 and VAAI
	Windows Server 2012
	Windows Server 2012 R2
	Windows Server 2016
	Windows Server 2019
	Citrix Ready
	OpenStack
General Specifications
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System
Central Management System
Synology Chat
Synology Chat
Download Station
Download Station
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX
Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Notes	The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server
Media Server
Media Server	DLNA Compliance
Synology Photos
Synology Photos
Synology Photos	Facial Recognition
	Object Recognition
Snapshot Replication
Snapshot Replication
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station
Surveillance Station
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	1080p: 40 channels, 960 FPS 3M: 40 channels, 520 FPS 5M: 32 channels, 320 FPS 4K: 24 channels, 240 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	1080p: 40 channels, 1200 FPS 3M: 40 channels, 880 FPS 5M: 40 channels, 520 FPS 4K: 40 channels, 400 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Synology Drive
Synology Drive
Synology Drive	Recommended Number of Concurrent Sync Clients	550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. Models with expandable memory are tested with their maximum supported memory. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office
Synology Office
Synology Office	Suggested Users	1,800
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. Models with expandable memory are tested with their maximum supported memory. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager
Virtual Machine Manager
Virtual Machine Manager	Recommended Virtual Machine Instances	4 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	4 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server
VPN Server
VPN Server	Maximum Connections	30

Notes: Model specifications are subject to change without prior notice. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
