VisualStation®
VS600HD
Optimized for video walls
Scale your TV wall with up to 50 video streams across two screens
Crystal-clear video feeds
Watch live camera feeds in up to 4K resolution
Plug-and-play surveillance
Experience instant access to Surveillance Station
US regulatory compliance
NDAA and TAA compliance help meet US federal requirements
Display your way
Simplify surveillance management with the VisualStation VS600HD, a PC-less compact surveillance client that pairs with Synology servers to create a comprehensive TV-wall monitoring solution.
High resolution dual display
Up to 4K video output and dual HDMI ports allow you to perform management tasks while monitoring multiple streams in crisp detail.
Minimalist design with TV mount option
The VS600HD can be affixed on the back of a monitor with the included VESA mount for optimized space utilization.
50-channel live view
Keep an eye on every corner of your premises with support for simultaneous monitoring of up to 50 channels at 600FPS/720p, as well as both H.265 and H.264 video compression standards.
Take security to the next level
Integrate the VS600HD as a powerful local management interface in a larger Synology surveillance deployment.
Centralized monitoring
Manage all your video feeds in one place and keep your property safe with the powerful features available in Surveillance Station
All-in-one security dashboard
Watch live video feeds, scrub through recorded footage, get alerts for security events and suspicious behavior, and control devices from one convenient overview.

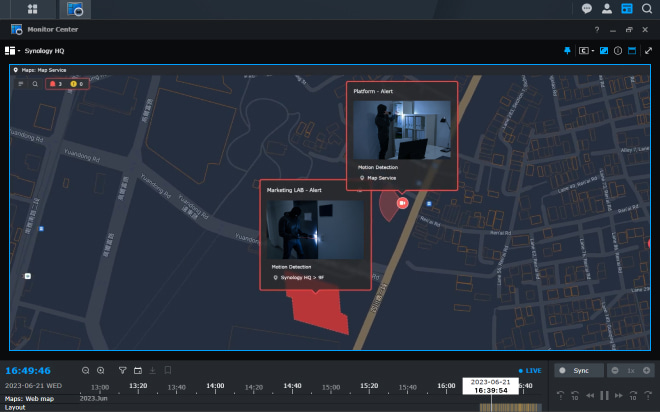

Accurate security mapping
Import floor plans of your premises or wider-area maps, maintain a clear overview of camera locations and angles, and see at a glance where events are detected.

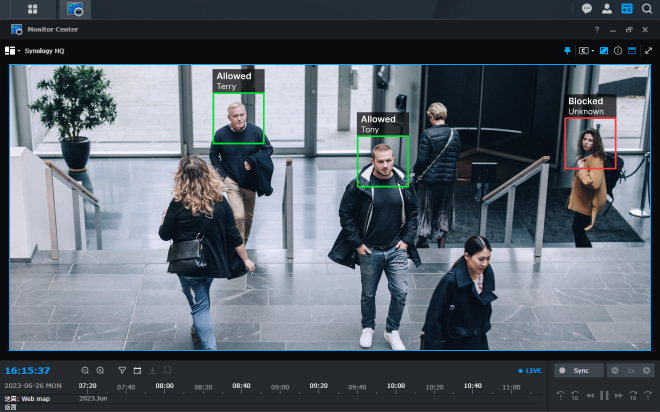

Deep learning analytics management
Combine the VS600HD with DVA Series Deep Learning NVRs and Synology Cameras, and leverage AI-powered analytics to boost incident response time. Learn more
Easily control and update remotely
Configure the display on the VS600HD and keep the firmware up-to-date remotely from any location.
Hardware Overview
- 1Power Indicator
- 2Status Indicator
- 3LAN Indicator
- 4HDMI Ports
- 5LAN Port
- 6USB 3.2 Gen 1 Ports
- 7Audio Out (3.5 mm)
- 8Audio In (3.5 mm)
- 9Power Button
- 10Reset Button
- 11Power Port
Frequently Asked Questions
How does the VS600HD work?
How can the VS600HD be used as part of a Surveillance Station solution?
Does the VS600HD work with my non-Synology surveillance infrastructure?
How many video streams can I display if I use IP cameras at varying resolutions?
What size is the VESA mount?
Learn more about Synology surveillance solutions
Notes:
Compatible with Surveillance Station 9.1.2 or later.
Hardware Specifications |
||
|---|---|---|
Video Output |
||
|
Video Output
|
Video Output | HDMI x 2 |
| Supported Video Resolution |
|
|
Audio Input |
||
|
Audio Input
|
3.5 mm Stereo Audio Jack x 1 | |
Audio Output |
||
|
Audio Output
|
3.5 mm Stereo Audio Jack x 1 | |
RJ-45 1GbE LAN Port |
||
|
RJ-45 1GbE LAN Port
|
1 | |
USB 3.0 Port |
||
|
USB 3.0 Port
|
2 | |
Appearance |
||
|
Appearance
|
Size (Height x Width x Depth) | 41.84 mm x 150 mm x 150 mm |
| Weight | 0.36 kg | |
Others |
||
|
Others
|
Power Supply Unit / Adapter | 36 W |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption |
15.49 W (96ch full-load) 5.85 W (Power on Idle) |
|
Temperature |
||
|
Temperature
|
Operating Temperature | -20°C to 40°C (-4°F to 104°F) |
| Adapter Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Operating humidity | 8% to 80% RH | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
Certification |
||
|
Certification
|
|
|
NDAA compliance |
||
|
NDAA compliance
|
||
TAA compliance |
||
|
TAA compliance
|
||
Warranty |
||
|
Warranty
|
3 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
Environment |
||
|
Environment
|
RoHS Compliant | |
Packaging Content |
||
|
Packaging Content
|
|
|
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
